Industrial super alkaline battery aaa lr03 Alkaline AAA Batteries 3A battery OEM Alkaline Battery AAABateri Alkali LR03 1.5V Triple A Batteries
These alkaline batteries are made of Manganese Dioxide, & contain no cadmium or lead.
Zero Mercury Alkaline Battery.
Chemical System: Alkaline Zinc-Manganese Dioxide.
AAA alkaline battery keep your family is filled with energy, so chose your household batteries to keep up with you!
Alkaline batteries deliver dependable, powerful performance that keeps you going and going.
Providing long life for the devices you use every day from toys to CD players to flashlights.
The latest generation of our popular alkaline batteries is exactly what you need.
The LR03 battery is Alkaline battery, it is non rechargeable cell with size AAA, voltage 1.5V, cylindrical shape, very easy to replacement by yourself.
lr03 oem alkaline primary battery specification
Type designation LRO3
Nominal voltage 1.5V
Shape and dimension Refer to Drawing
Typical weight 11±0.5g
Shelf life 5 years
Date code Unless otherwise specified, everybattery will carry an expiry date codefor 60 months.(e.g. a battery manufacturedon January 2007 will carry an expiry codeof01-2012.)
Jacket Foil jacket
Heavy Metal Content Hg<lppm, Cd<10ppm, Pb<30ppm
industrial alkaline battery Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
Data sheet for dry cell alkaline aaa battery AAA batteries LR3
| Model | alkaline battery LR03 AAA battery |
| Diameter | 9.5-10.5 |
| Height | 43.3-44.5 |
| Norminal voltage | 1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 8H |
| 3.9Ω, 24h/d, 0.9V/ 2.5H |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Dimensions of Battery LR03 1.5v aaa alkaline battery
| Type | Diameter mm | Height mm | Weight
kg | Capacity
mah | Testing condition |
|
| LR03/ AAA/ 1.5v | 9.5~10.5 | 43.3~44.5 | 0.0113 | 1300 | 10mA, 24h/d, 20°c,e.v.=0.8V |
|

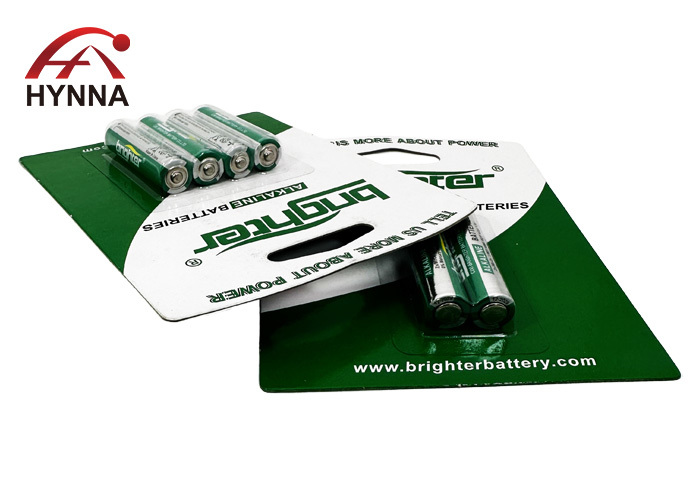

Alkalaine battery LR03 AAA battery lr03 aaa alkaline battery packing detail
| Type | Blister packing | Shrink packing |
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
Hot sale Alkaline batteries from Hynna
Alkaline Primary battery 1.5v aaa lr03 alkaline batteries
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h |
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h |
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h |
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h |
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min |
| 270Ω, 1h/d, 5.4V | 1150min |
Alkaline Rechargeable household alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times |
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7 working days after payment.
For Other Battery, the delivery time is about 20 working days after payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents for identification.
